48V Modular Lighting Platform

Modular Cylindrical Tube Light System

Build suspended lighting compositions from illuminated tubes, powered connectors and magnetic functional modules – all organised around a consistent Ø55 mm cylindrical language.

Configurable modular cylindrical tube lighting installation

Ø55 mmUnified tube diameter
DC 48VLow-voltage platform
15-60WFour tube outputs
3 familiesPower, link and end modules
Al + PCHousing and diffuser

A system, not a single fixture

One cylindrical language. Many architectural outcomes.

The platform combines illuminated tubes, powered joints and magnetic light modules. Designers can develop straight runs, angled forms, layered compositions and mixed ambient-accent arrangements without changing the visual family.

01 / STRUCTURE

Modular tube bodies

Three electrical roles and four output levels create the foundation of each layout.

02 / CONNECTION

Directional joints

Top-bottom joining and rotational connections support more expressive geometries.

03 / FUNCTION

Magnetic light modules

Add spot, grille, flood or pendant functions where visual emphasis is required.

04 / PROJECT

Configured to layout

Module quantities, drivers, suspension and accessories are selected around the project plan.

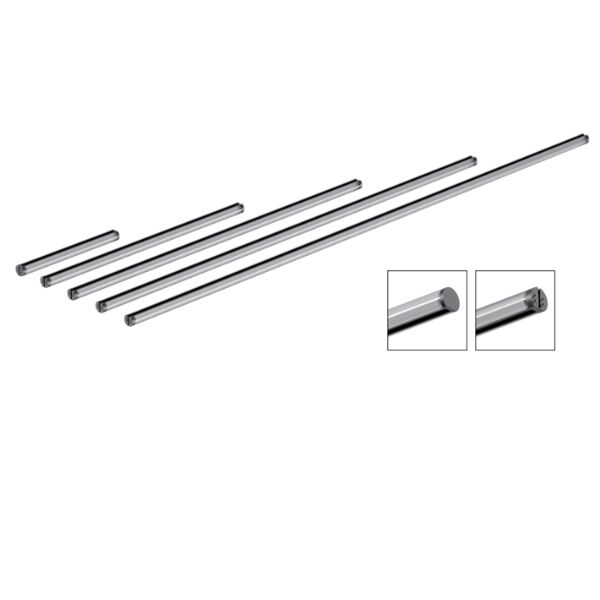

Complete product collection

Three tube families. Twelve defined sizes.

Each family has a different connector role and therefore its own exact length. The dimensions below follow the supplied product sheet and are not rounded to a shared nominal size.

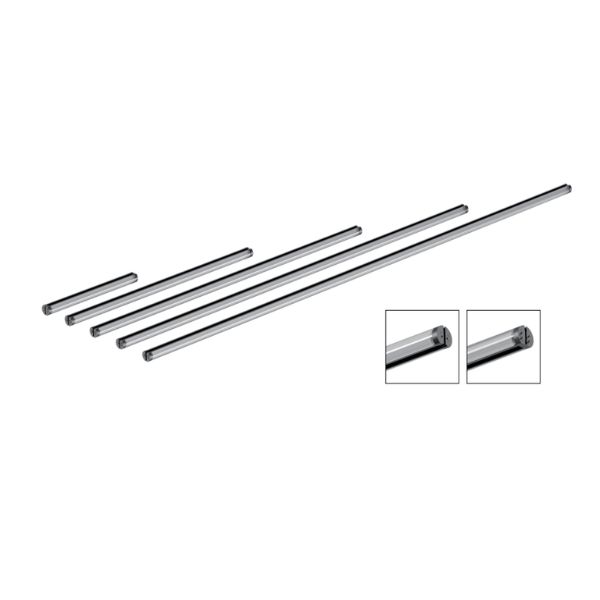

Single-end starting power modular tube light
01 / Single-end powered

Starting Power Module

Primary power-entry tube for beginning a connected composition.

Size Power
Ø55 × 595 mm 15W
Ø55 × 1195 mm 30W
Ø55 × 1765 mm 45W
Ø55 × 2365 mm 60W
Double-end linkable modular cylindrical tube light
02 / Double-end powered

Intermediate Linkable Module

Double-ended tube for extending connected runs and multi-part forms.

Size Power
Ø55 × 600 mm 15W
Ø55 × 1200 mm 30W
Ø55 × 1770 mm 45W
Ø55 × 2370 mm 60W

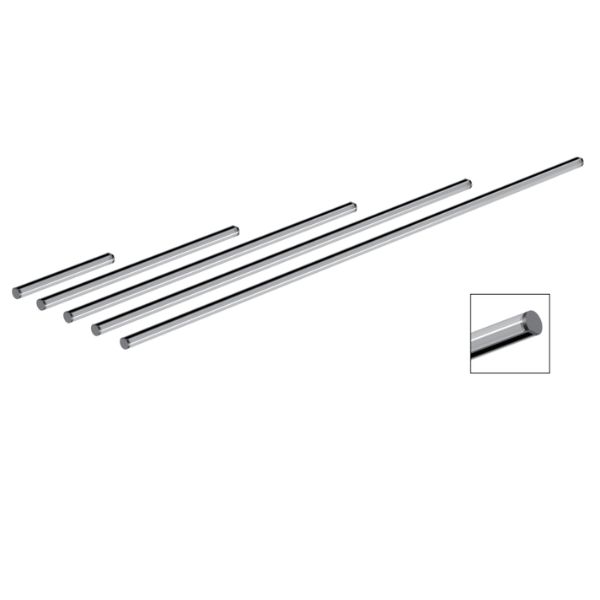

Standalone end-cap cylindrical tube light
03 / Independent tube

Standalone End-Cap Module

Independent illuminated tube for terminal positions or separate compositions.

Size Power
Ø55 × 590 mm 15W
Ø55 × 1190 mm 30W
Ø55 × 1760 mm 45W
Ø55 × 2360 mm 60W

How the system works

Join, rotate and add function.

The visual system is built from more than illuminated tubes. Connection pieces shape the geometry, while magnetic functional modules introduce task and accent light.

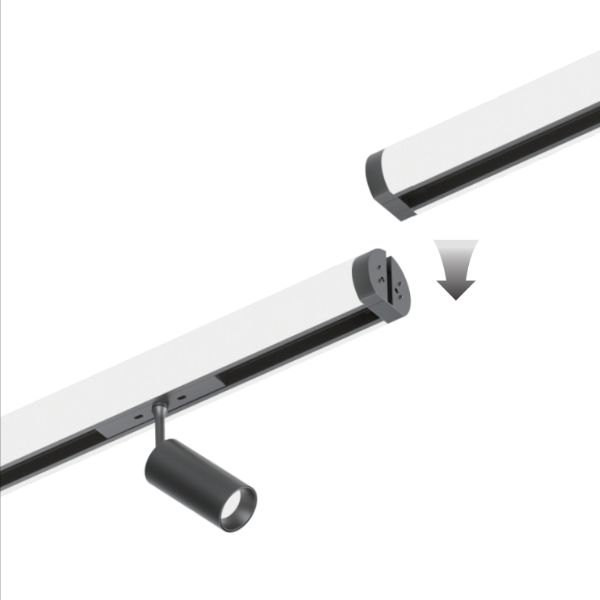

Top and bottom joining mechanism for cylindrical tubes

Mechanical connection

Top-bottom joining

Connect crossing or layered members while keeping the cylindrical system visually continuous.

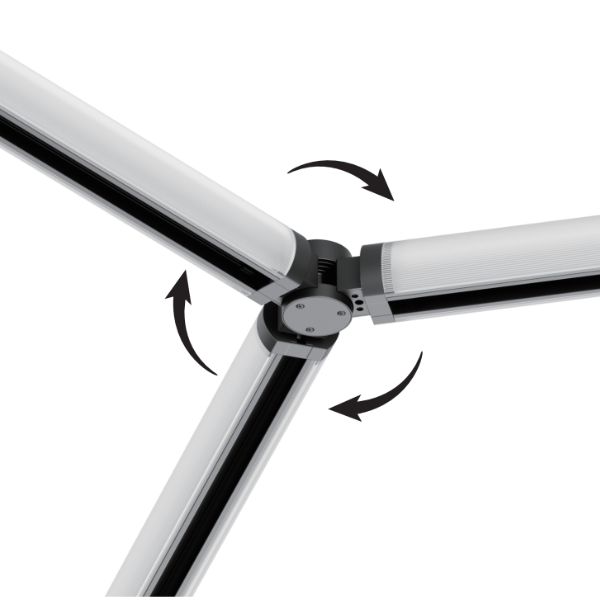

Rotational joint for modular cylindrical lighting

Adjustable geometry

Rotational assembly

Change the direction of connected members to form open angles and irregular compositions.

Snap-on magnetic spotlight module

Magnetic accessory

Snap-on light modules

Add directional light where merchandise, artwork or working surfaces need emphasis.

Magnetic grille light module for tubular lighting system

Mixed illumination

Linear and accent options

Combine diffuse tube light with compatible grille, flood, spot or pendant components.

Configurations and combinations

From a linear run to a suspended light structure.

The same family can be arranged as simple parallel lines or developed into open geometric compositions. Final connector and suspension quantities should be confirmed from the project drawing.

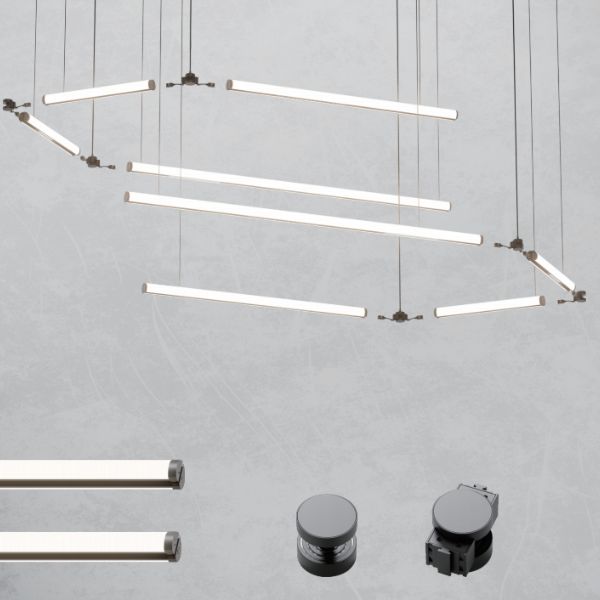

Complete modular cylindrical lighting product family
System-wide product paletteTubes, joints and magnetic functional modules.

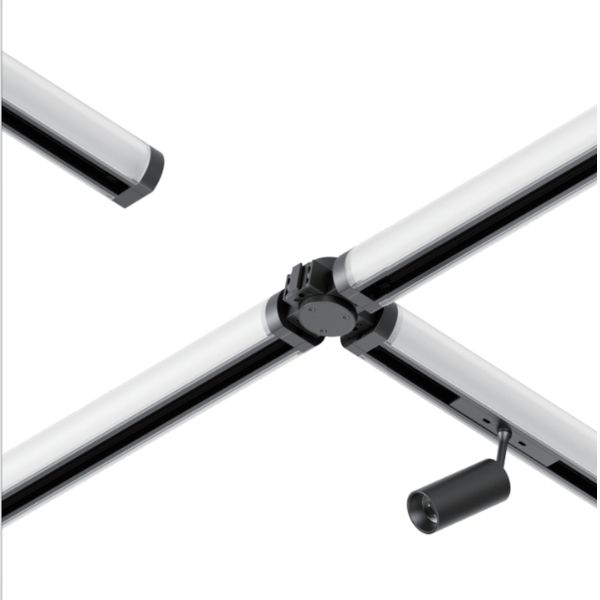

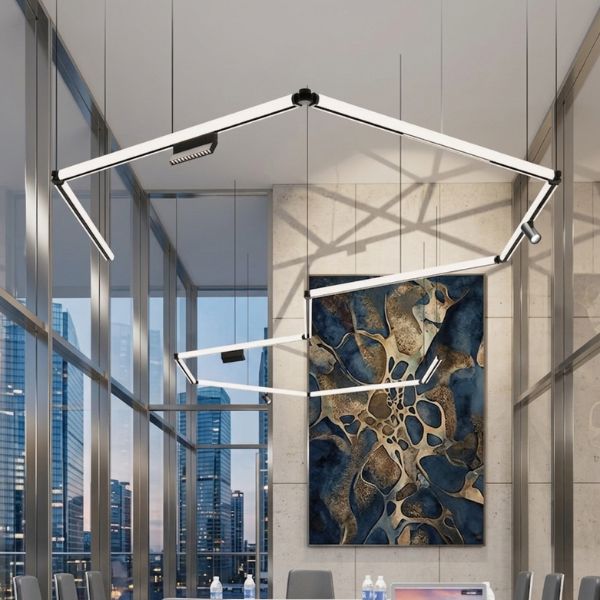

Creative splicing modular tube lighting
Creative splicingBuild directional suspended forms.

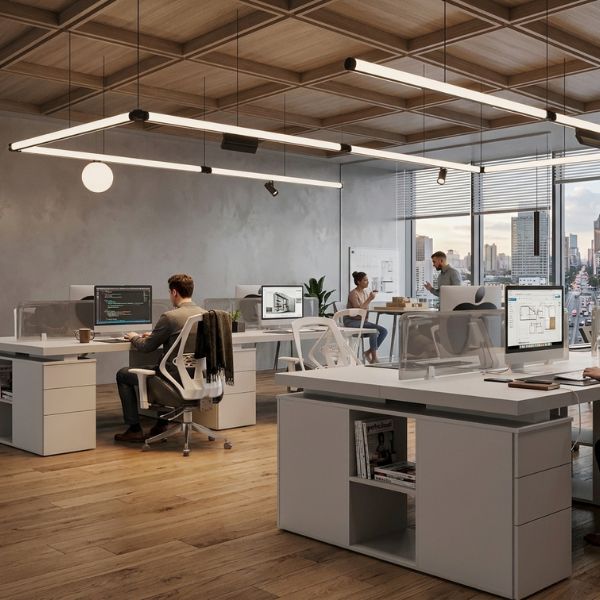

Modular cylindrical track lighting composition
Functional combinationsAmbient and accent light in one system.

Technical framework

Core specifications for project selection.

Use these values for initial evaluation. Final electrical, optical and accessory selections should be confirmed against the chosen configuration.

OEM / ODM and project support

Share your target market, ceiling layout, finish, branding and packaging requirements. Prillumen can assist with module selection and project-specific product preparation.

Operating voltageDC 48V
Tube diameterØ55 mm
LED platformSMT 2835
MaterialAluminum + PC
CRI>80 listed
EnvironmentIndoor use
Listed CCT3000K / 4000K / 5700-6000K*
Listed beam angle24°*

*The supplied product sheet contains both 5700K and 6000K references. Confirm the required CCT before ordering. The listed beam angle applies to the documented tube configuration; optical accessories may use different distributions.

Commercial applications

Designed for spaces that need both form and flexibility.

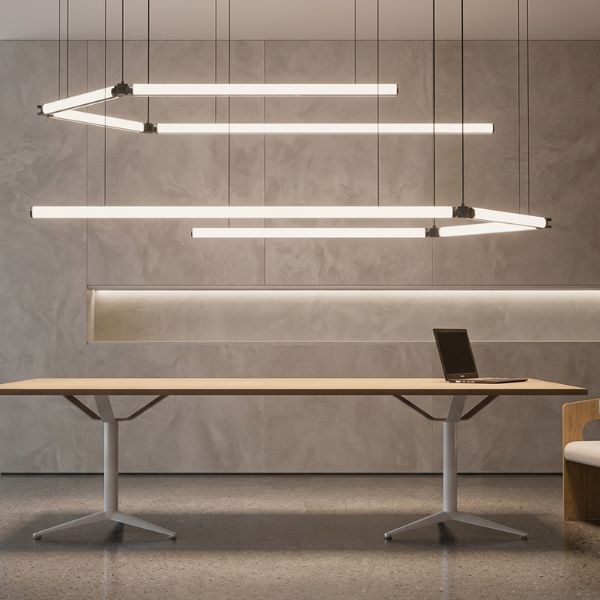

Modular tube lighting for a commercial interior

Retail and showrooms

Create a recognisable overhead structure while magnetic modules direct attention to changing displays.

Geometric cylindrical lighting for hospitality

Hospitality and reception

Use light as an architectural feature across lobbies, lounges, dining zones and circulation spaces.

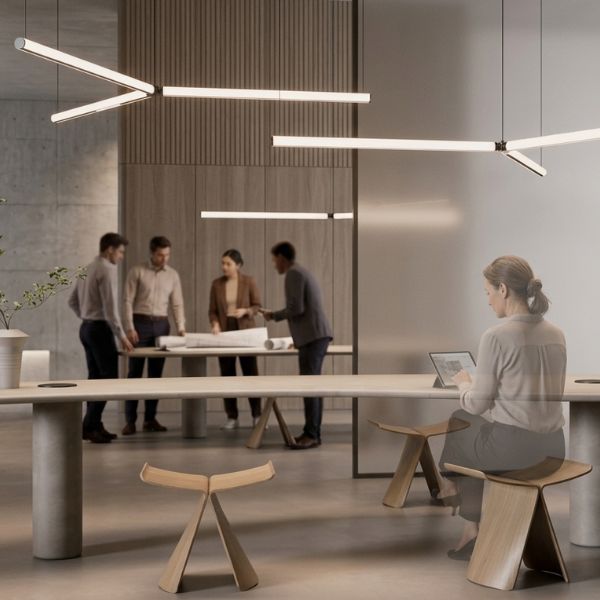

Modular lighting for offices and meeting spaces

Offices and meeting areas

Combine broad ambient illumination with focused light for tables, walls and presentation zones.

Project FAQ

Before specifying the system.

A project drawing helps confirm tube roles, connectors, suspension points, drivers and magnetic light modules.

How do I choose between the three tube families?

Start with the electrical path. Use a Starting Power Module at the power-entry position, Intermediate Linkable Modules where a connected run continues, and Standalone End-Cap Modules for independent or terminal positions.

Can different lengths and wattages be combined?

Yes, combinations can be planned around the composition. Driver capacity, connectors and the complete electrical layout must be checked before production.

Which files should I send for a quotation?

Send the ceiling plan or sketch, required dimensions, installation height, finish, CCT, quantities and any accent-light requirements. RCP, CAD or clearly dimensioned PDF drawings are useful.

Are finishes, branding and packaging customisable?

Project-specific finish, private-label branding and packaging can be discussed according to order scope and target market requirements.

Turn your lighting layout into a buildable module list.

Send your concept, dimensions and target specifications for product selection and quotation support.

Request a Project Quote →
